Product Overview

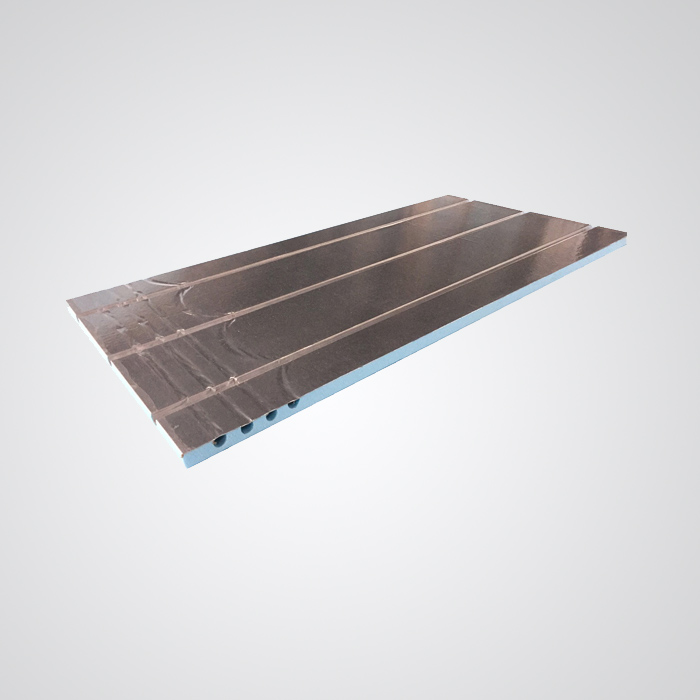

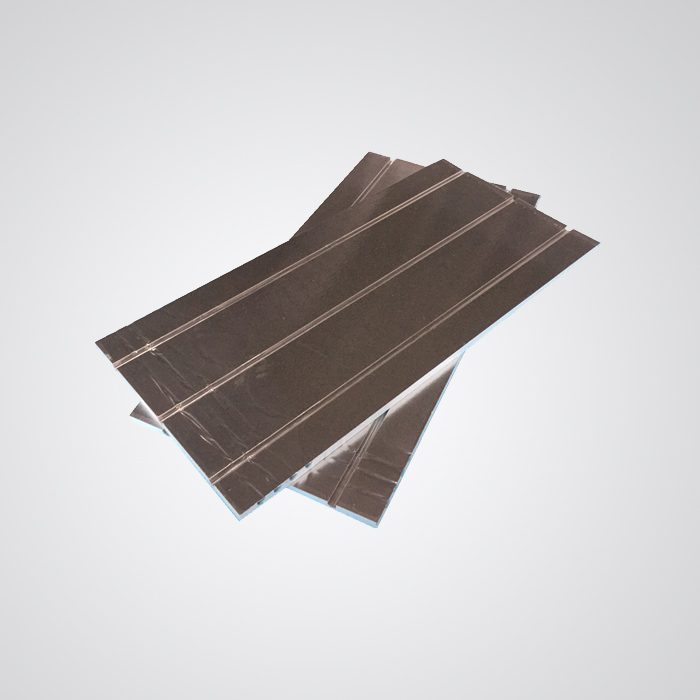

QUICK-FLOOR XPS is a fast-response underfloor heating insulation panel designed for hydronic radiant floor heating systems.

The panel is manufactured from high-density extruded polystyrene (XPS) and laminated with an aluminum foil surface, ensuring efficient heat distribution and reduced energy loss.

Compared with traditional concrete-embedded floor heating systems, QUICK-FLOOR panels can regulate floor temperature in approximately 30 minutes, delivering improved thermal comfort and energy savings.

Key Features

Fast response time compared to concrete-based floor heating systems

Full-surface aluminum foil for efficient heat distribution

U-shaped groove design for stable pipe fixing and consistent heat transfer

Lightweight XPS core for easy transport and installation

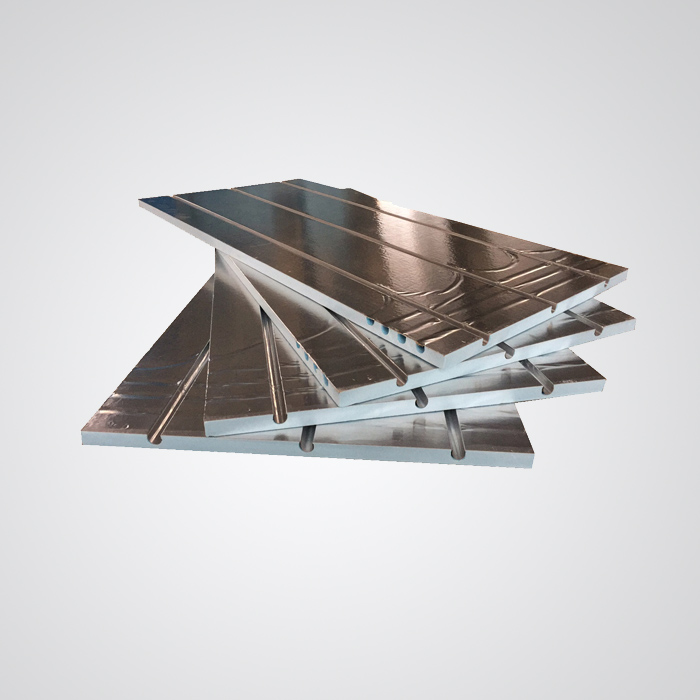

Integrated pipe routing and turning channels

Suitable for renovation and new construction projects

Compatible with various floor coverings

Energy-efficient and cost-effective solution

Technical Specifications

Material:

• Core: Extruded Polystyrene (XPS)

• Surface: Aluminum foil heat distribution layer

Mechanical Properties:

• XPS Density: 32–38 kg/m³

• Compressive Strength: ≥ 300 kPa

• Tensile Strength: ≥ 350 kPa

Thermal & Physical Performance:

• Water Absorption: ≤ 1.0 vol.%

• Linear Thermal Expansion: 0.07 mm/m·K

• Operating Temperature Range: -50°C to +80°C

System Operating Temperature:

• Normal Operating Temperature: 15°C – 60°C (60°F – 140°F)

Installation:

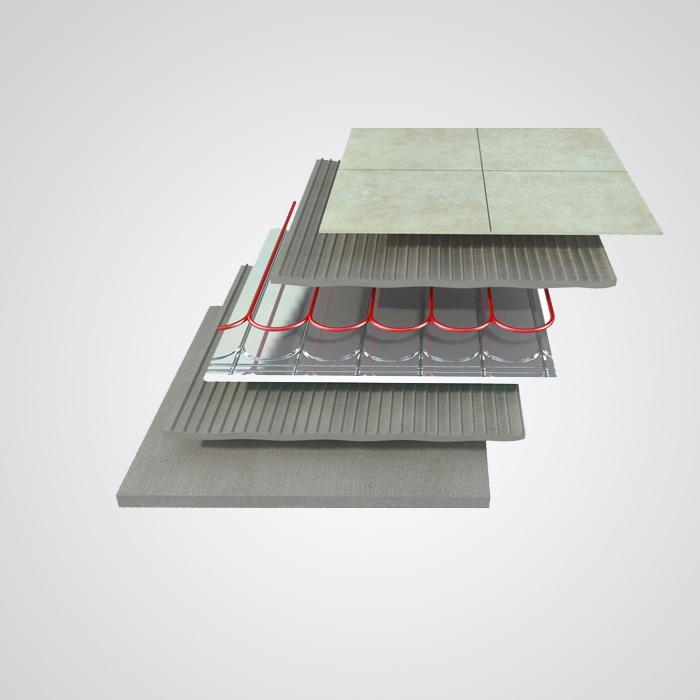

• Dry Installation System: No concrete embedding required

• Installation Surface: Can be installed over new or existing concrete subfloors

• Applications: Suitable for floor, wall, and ceiling radiant heating systems
