Product Overview:

• Ideal for Multi-Story Construction: Seamlessly integrates sound control and a thermal break to reduce noise and heat loss, making it perfect for residential and commercial high-rise buildings.

• Customizable Solutions: Compatible with Ditra-Heat-HK cables for personalized heat settings, ensuring a comfortable, evenly heated tile floor.

• Tile Protection: Uncoupling layer effectively absorbs substrate movement, protecting tiles from stress-induced cracks and delamination.

• Superior Waterproofing: Polypropylene composition provides excellent waterproofing, shielding moisture-sensitive substrates from penetration.

• Long-Term Coverage: Backed by a 15-year limited warranty against manufacturing defects when installed following the guidelines in the Installation Handbook and Technical Data Sheet.

Installation Instructions:

1. Prepare the Surface:

   • Ensure the substrate is clean, dry, and free of debris.

   • Minimum tile size: 2″ x 2″ (5 cm x 5 cm).

2. Apply the Peel and Stick Membrane:

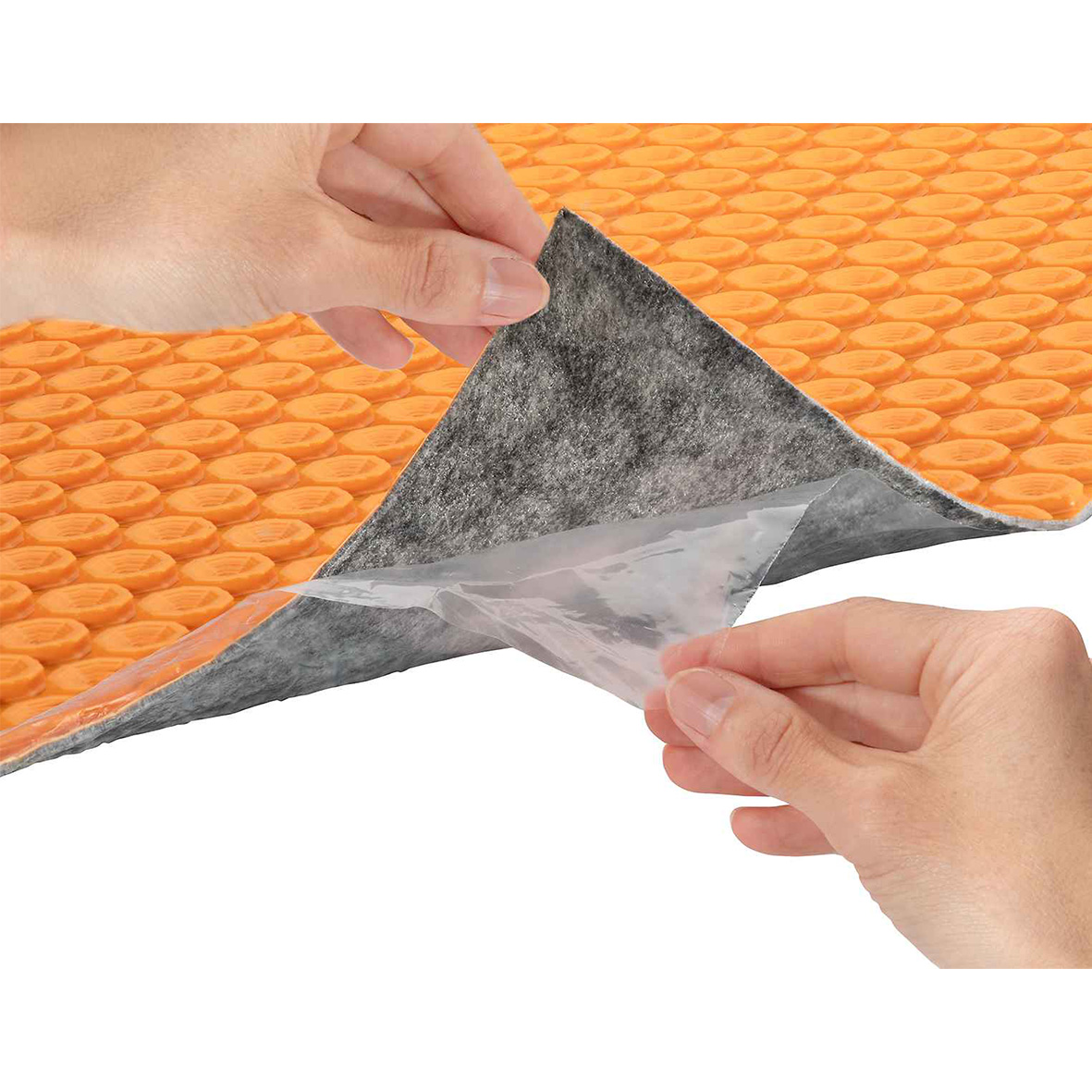

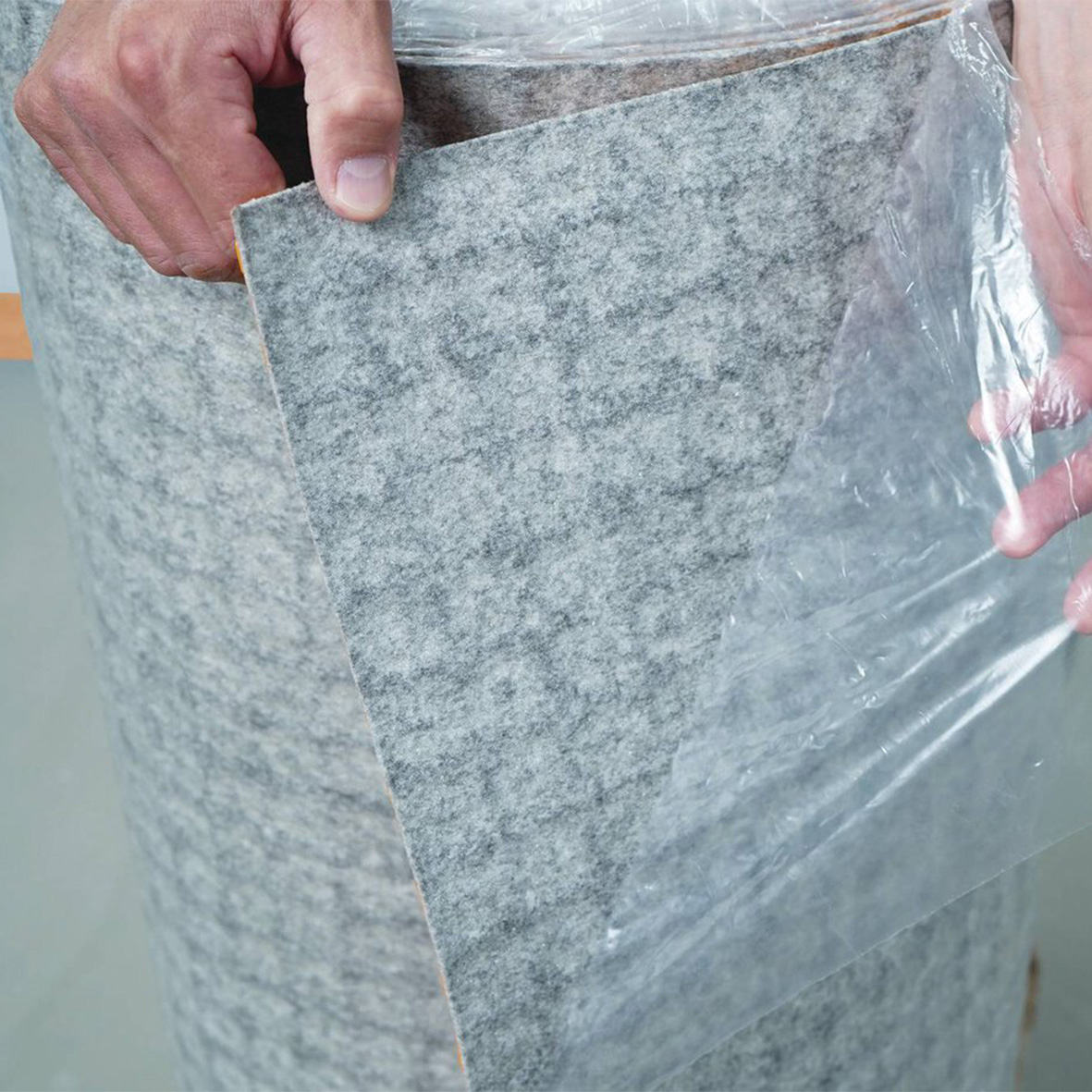

   • Remove the release liner from the DITRA-HEAT-DUO-PS membrane.

   • Place the fleece/adhesive side down, applying to the floor.

   • Embed the matting into the substrate using a float, screed trowel, or DITRA-ROLLER for full contact between adhesive and substrate.

3. Roll and Secure:

   • Use a DITRA-ROLLER (with weight not exceeding 75 lbs) to ensure full embedding.

   • Overlap successive passes for a smooth installation.

4. Abut Adjacent Sheets:

   • Align studs on the matting to assist with heating cable installation.

5. Install Heating Cables:

   • Follow the DITRA-HEAT-E-HK installation instructions (provided separately).

   • Tile can be installed directly over the membrane after heating cables are in place using unmodified thin-set.
