X209
Shower Tray – Prefabricated, Waterproof, Tile-Ready
Available Sizes

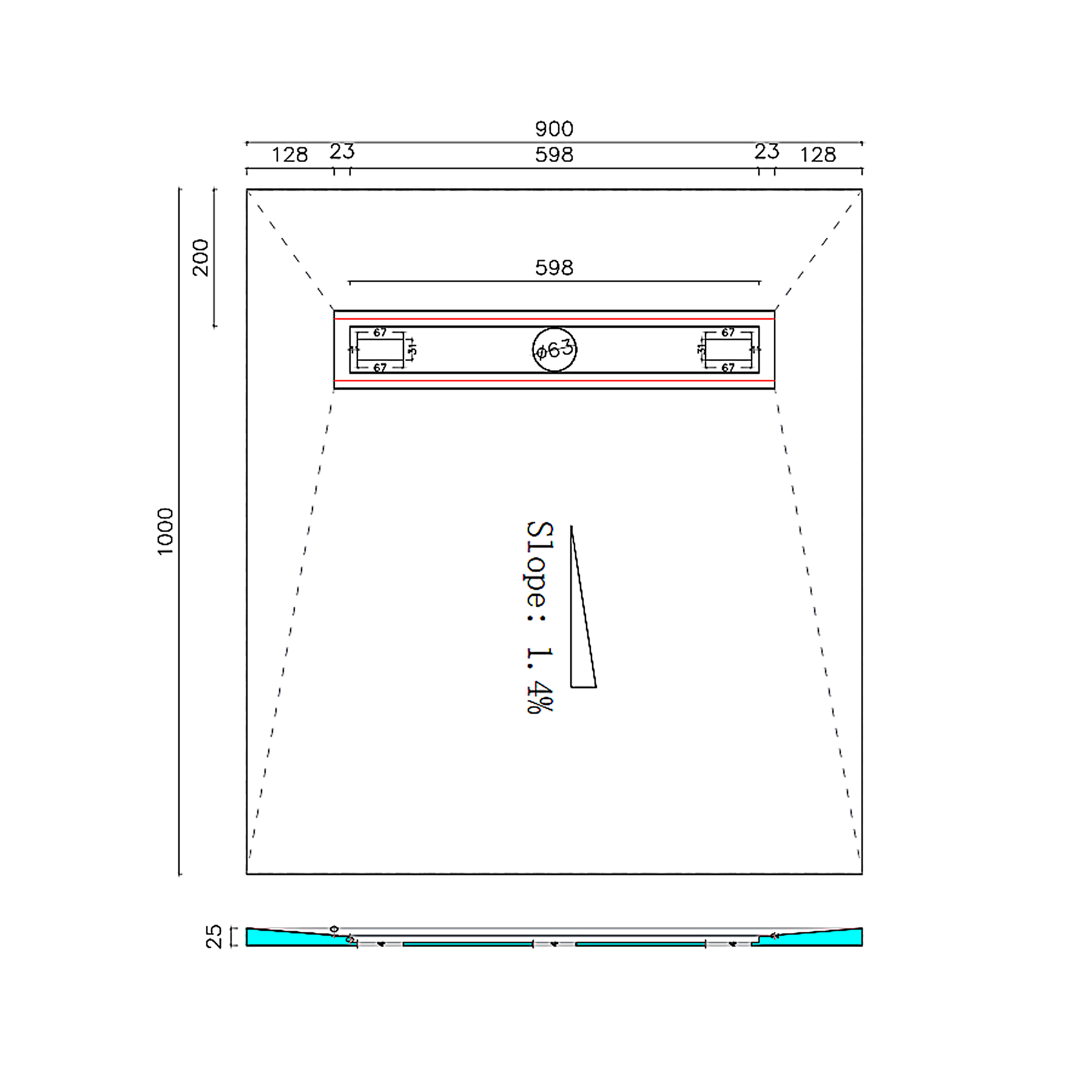

| Product Code | Dimensions (mm) | Channel Drain Length |
|---|---|---|
| 075100200 | 900 x 900 x 25 | 700 |
| 075100201 | 1200 x 900 x 25 | 700 |
| 075100202 | 1200 x 1200 x 25 | 900 |
| 075100203 | 1600 x 1000 x 25 | 800 |
All trays must be installed with STRUX Fundo channel drain kits and covers.
Product Overview

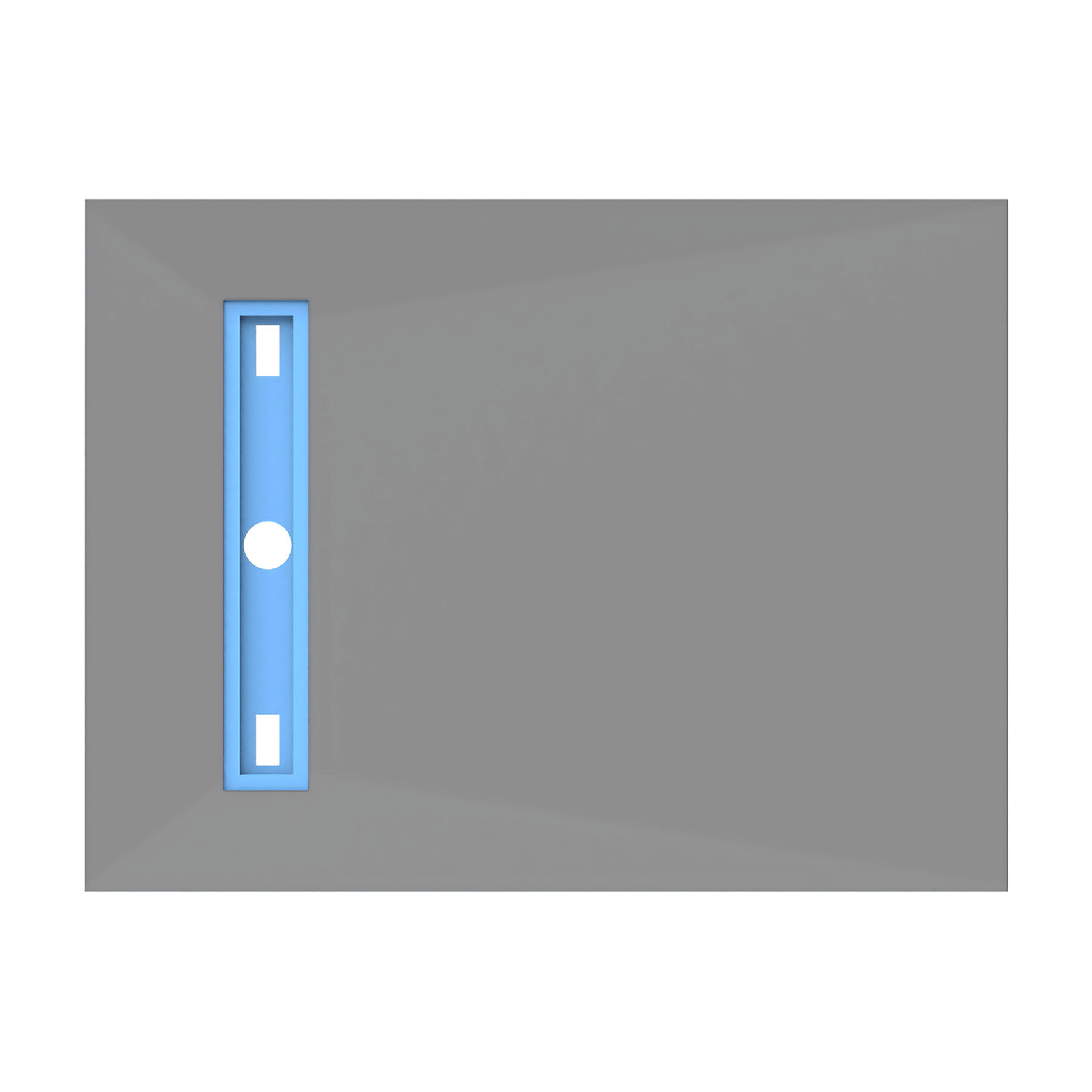

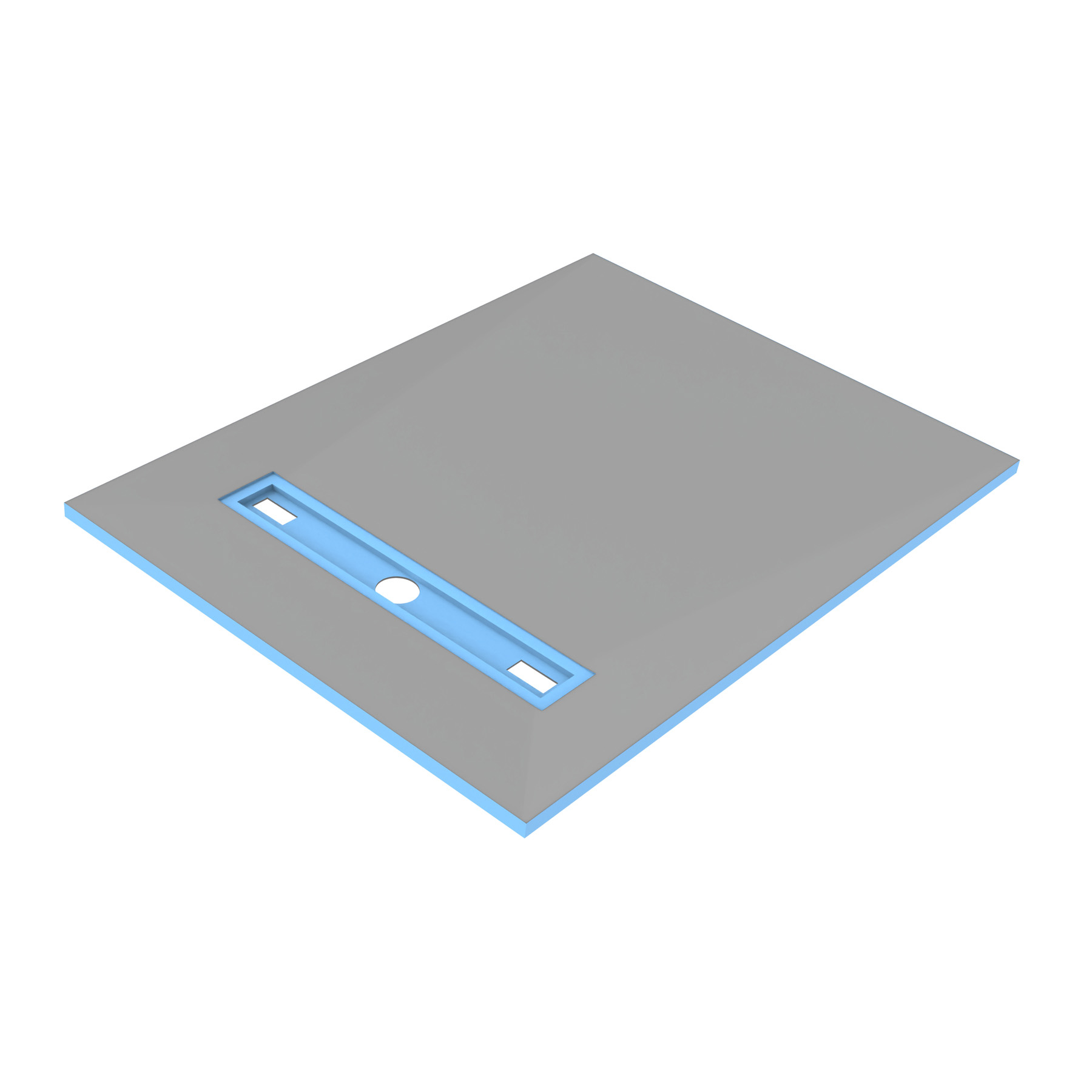

Shower Tray is a pre-formed shower tray specifically designed for suspended timber floors, featuring linear drainage and a flush-to-floor design. With a 25 mm outer edge, it integrates seamlessly with existing wooden floors without cutting into joists or raising the floor height.
This product is based on a proven concept and delivers a reliable, safe, and easy-to-install solution for moisture-sensitive timber floors.
Key Benefits
- Linear Drainage: Pre-sloped surface channels water efficiently to the side drainage outlet, reducing standing water.
- Timber Floor Compatible: Low-profile 25 mm outer edge allows flush integration without leveling or raising the floor.
- Durable Waterproof Core: Blue XPS foam core reinforced with alkali-resistant glass fibre and polymer-modified cement coating. 100% waterproof; retains functionality even if damaged.

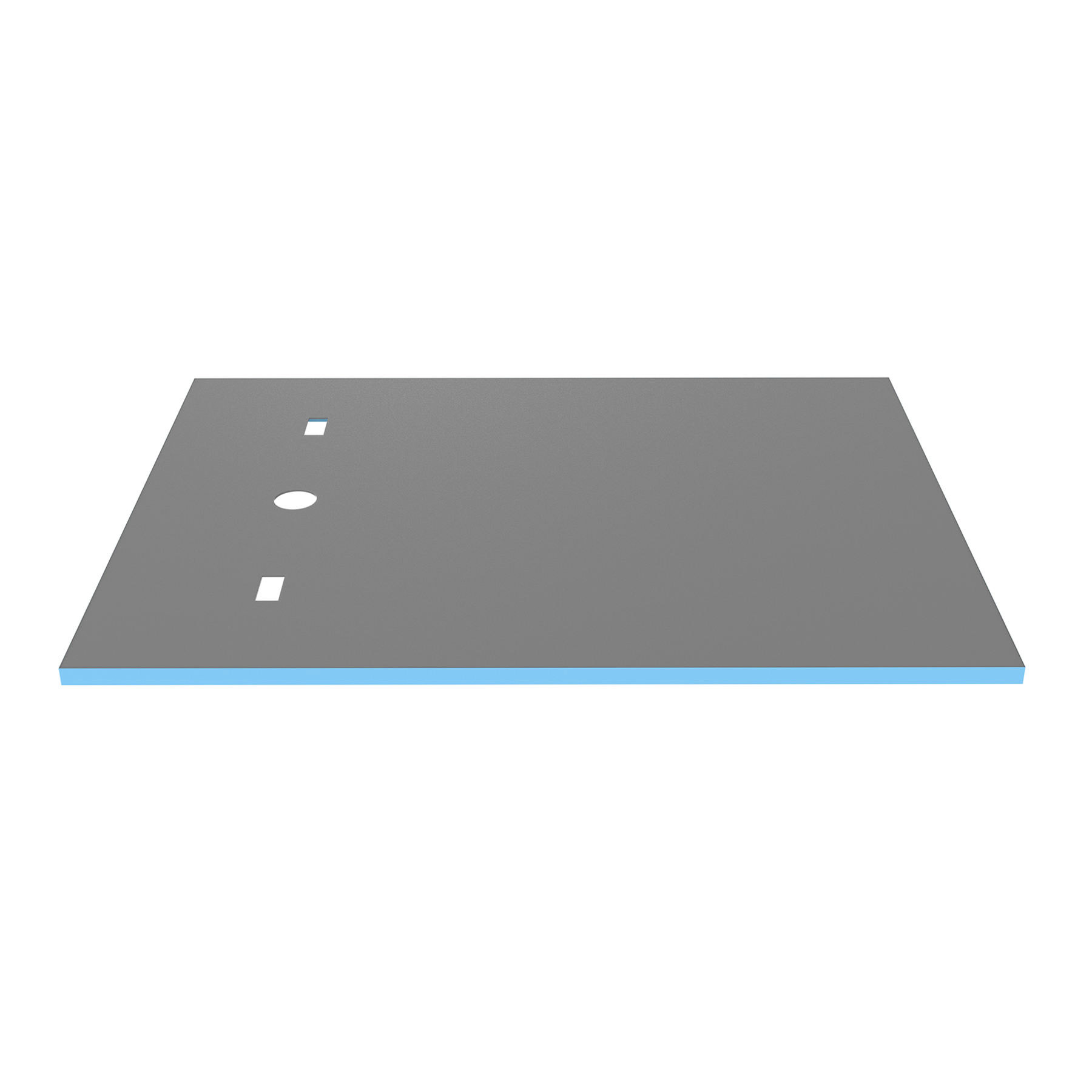

- Reinforced Drain Area: Drain region thickened to 50 mm underside; can be supported with concrete or STRUX Shower Tray Drain Substructure Element.
- System Compatibility: Fully compatible with STRUX Shower Tray channel drain kits, covers, sealing kits, and related system components.
Complementary Products
- Shower Tray Sealing Set: Includes waterproof membrane, sealing tape, and internal corners; covers up to 10 m of joints.
- Shower Tray Channel Cover: Tileable or standard, compatible with all drain lengths.
- Shower Tray Drain Substructure Element: Pre-formed foam for precise drain support; alternative to concrete.
- STRUX Adhesive: For bonding tray joints and board connections.
Installation Notes
- Pre-sloped tray ensures water drains efficiently when tiled.
- Low-profile edge allows flush-to-floor installation with timber floors, eliminating the need for leveling or height adjustment.
- Moisture-sensitive surfaces require care; factory-sealed for safe and reliable installation.
- Use the complete STRUX Shower Tray system accessories to ensure full waterproofing and structural stability.
