Product Specifications

• Product Size: 9.8 in × 98.4 ft (25 cm × 30 m)
• Nominal Coverage: 80.7 sq ft (7.5 m²)
• Thickness: 20 mil (0.5 mm)
• Material: High-density polyethylene (HDPE) core with polypropylene (PP) non-woven fleece laminated on both sides
• Color: Orange; custom colors available upon request

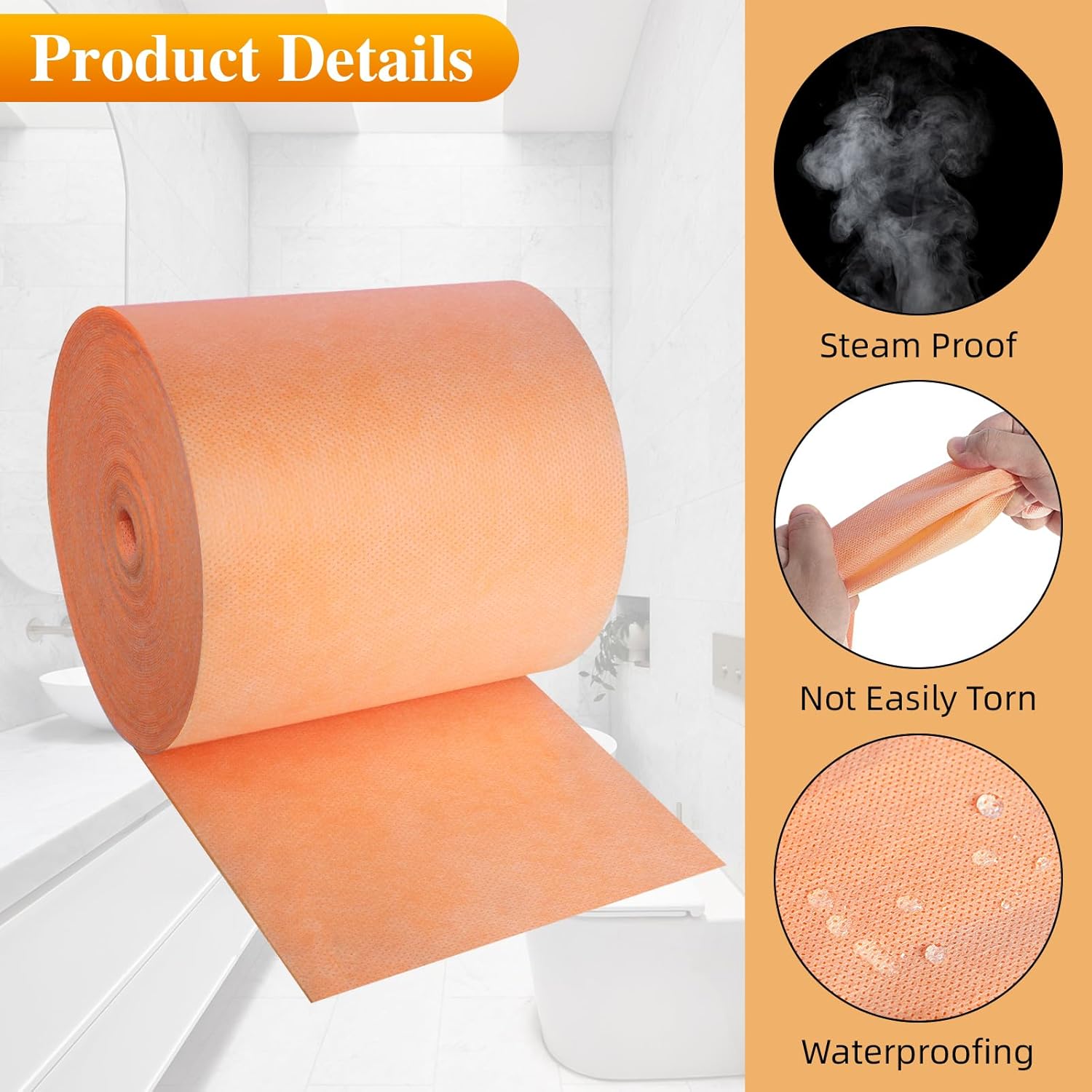

High-Quality Composite Structure

The STRUX Waterproof Membrane features a high-density polyethylene (HDPE) core laminated with polypropylene (PP) non-woven fleece on both sides.

This three-layer composite structure provides a combination of waterproofing, flexibility, tear resistance, and durability, making it suitable for use beneath tile installations in moisture-prone areas.

Waterproof & Moisture Protection

With a 20 mil (0.5 mm) thickness, the membrane provides a reliable waterproof barrier beneath tile installations and helps protect the substrate from water penetration.

It is designed for use in wet rooms and other moisture-prone areas, helping to protect the underlying substrate from moisture-related damage.

Easy to Cut & Install

• Easily cut to size with scissors or a utility knife
• Flexible and foldable for corners, edges, and irregular surfaces
• PP non-woven fleece surfaces provide a suitable bonding surface for tile-setting mortar
• Suitable for both professional installers and DIY applications

Recommended Applications

Designed for wet and moisture-prone areas, including:

• Shower walls and floors
• Bathroom walls and floors
• Sauna rooms
• Kitchen walls and floors
• Basements and garages
• Other interior moisture-prone areas

Suitable Substrates

Suitable for use over properly prepared:

• Concrete
• Cement-based substrates
• Existing ceramic tile
• Natural stone and marble
• Approved wood-based substrates
